Multiplexer⚓

Multiplexer

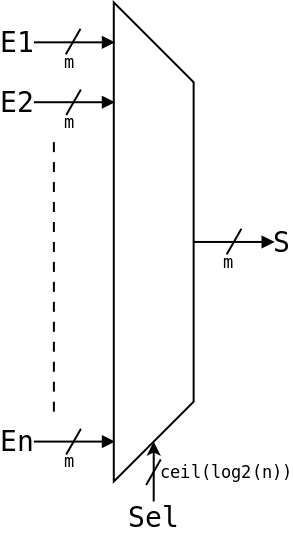

Described with a case structure:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
process(E1,E2,...,En,Sel)
begin
    case Sel is
        when "0...00" =>
            S <= E1;
        when "0...01" =>
            S <= E2;
        .
        .
        .
        when others =>
            S <= En;
    end case;
end process;

Described with a when else structure:

1
2
3
4
5
6
S <= E1 when(Sel = "0...00")else
     E2 when(Sel = "0...01")else
     .
     .
     En-1 when (Sel = "......") else
     En;
